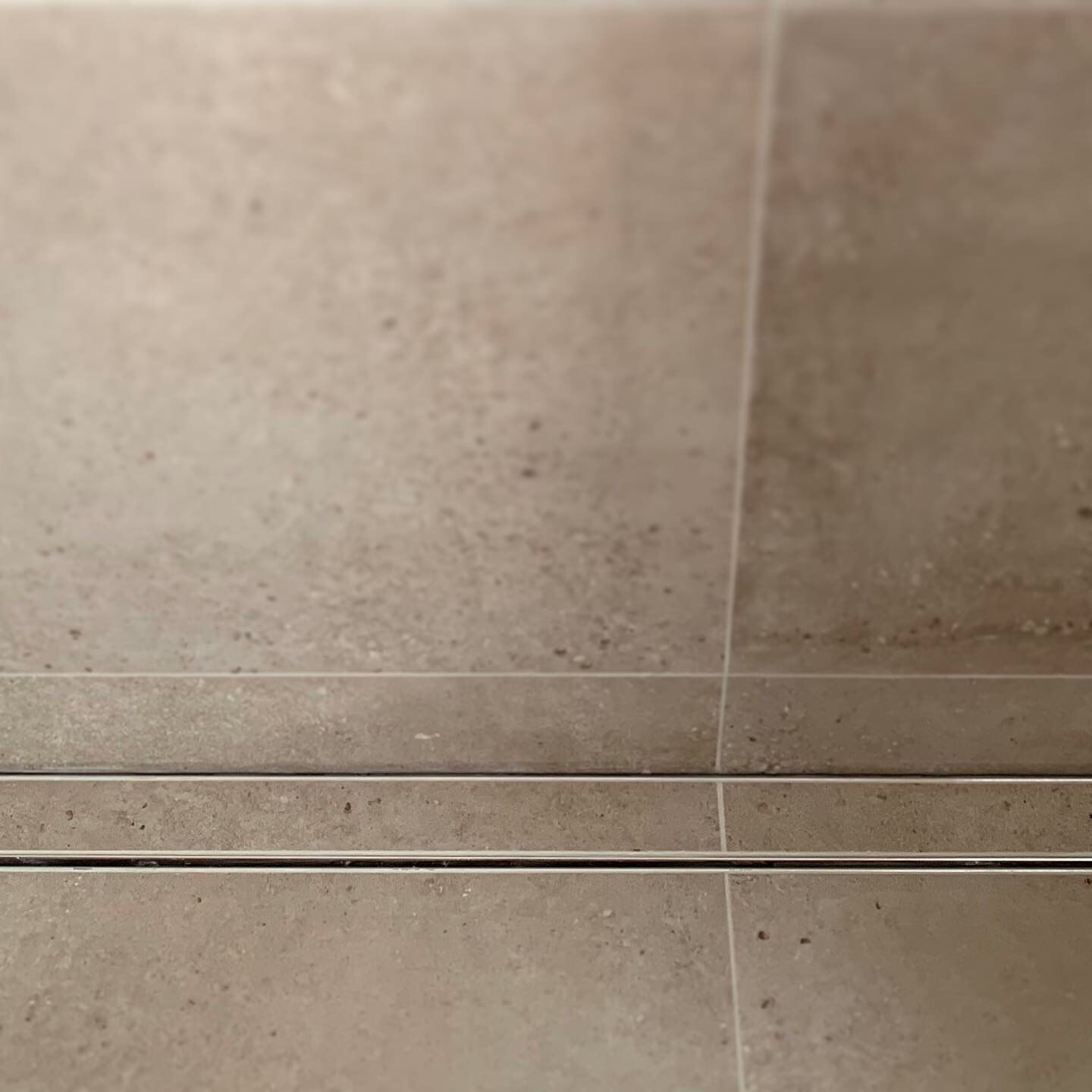

Advantage Tile to Tile

The standard Advantage Tile to Tile linear drain is installed at the front of the shower, between two side walls of the shower with floor tiles on either side of the linear drain.  Fall can be created within the wet area or shower by raising the rear of the wet area with a screed or graded construction board. The benefit being the grate can be kept at the finished floor level, reducing normal requirements to drop the grate down.

Glazing Channels

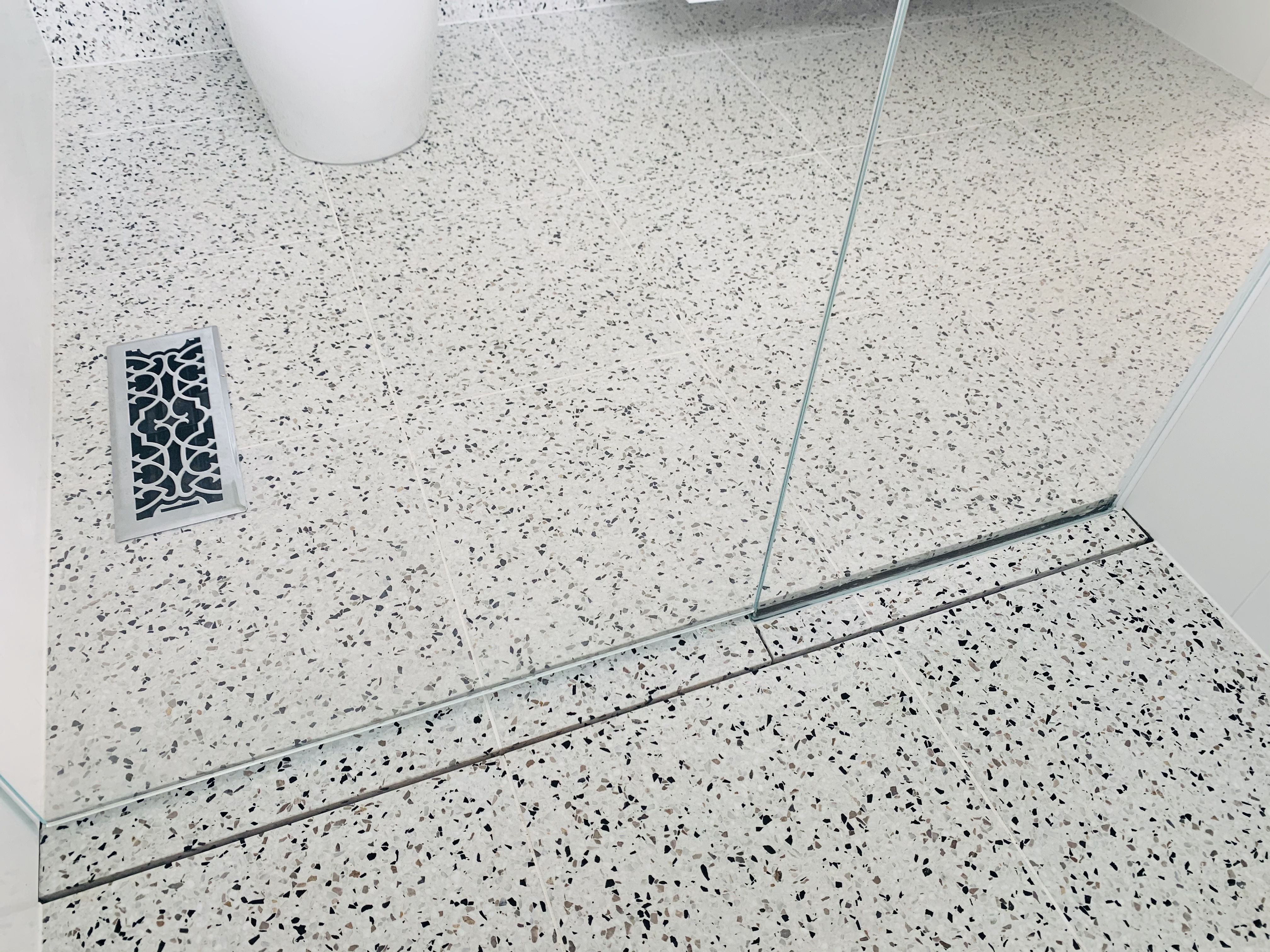

Glass insert channels can be integrated into the drain to support the shower screen glass to give you a multitude of opportunities to configure your bathroom in any way you want.

Our Tile to Tile with Glass Insert page can show you just how our glazing channels can work for you.

HF Wall Flashings

Glass insert channels are most often complimented with wall flashings to fix the glazing screens to the walls.

Our Bathroom Flashings page demonstrates how our flashings can assist in configuring and waterproofing your bathroom or wet area.

Nib Walls

We can design our drains to flash around nib-walls and corners, giving you complete peace of mind when waterproofing your bathroom and drains.

Corner Drains

Tile to Tile Corner drains is popular in accessibility bathrooms where an open plan is required. Alternatively, Premium Vinyl to Vinyl drains provide open plan options when a vinyl floor finish is required.

Available in the following styles:

• 7 Bar Grate
• Tile Insert Tray
• Inverted Tile Tray
• Height Adjustable Tile Insert Tray
• Punched Slot

Download our Tech Pages here:

• ATTB - 7 Bar Grate
• TITT - Tile to Tile Tile Insert Tray
• ITTT - Tile to Tile Inverted Tile Tray
• HATITT - Tile to Tile Height Adjustable Tile Insert Tray
• PSTT - Tile to Tile Punched Slot

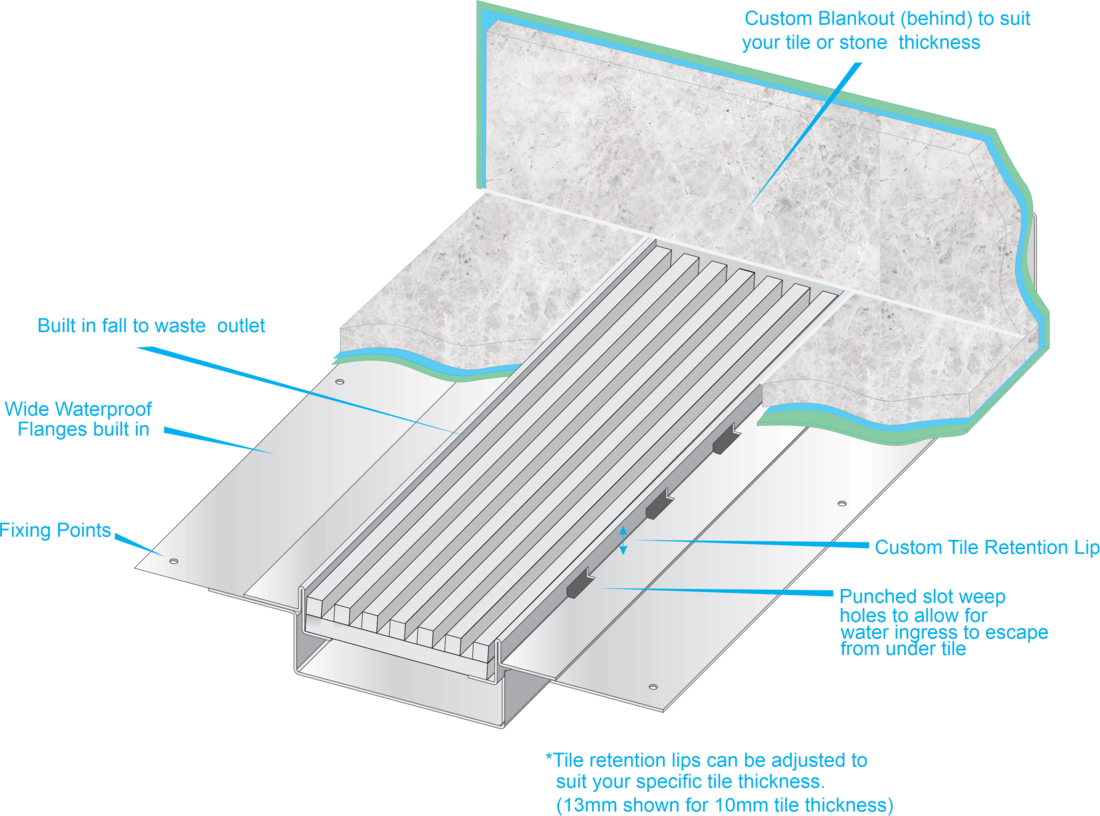

Features:

• Customisable Blankouts
• Weep holes to eliminate  water hydration from under the tile
• Fixing points
• Incorporated waterproof flanges
• Fully customisable to the required length and your tile thickness

Optional Extras:

• Glazing channels
• Nibwall flashings
• Additional droppers
• Outlet locations greater than 100mm from an end
• Multi-direction fall
• Powdercoating
• Mitred corners
• Curved drains to any radius or width required

Download our Tech pages here:

Enquire Now

Included as standard:

• Custom lengths
• Built-in fall to left or right
• Exclusively made from 316 Brushed Marine Grade Stainless Steel
• Passivated and Electro-polished to prevent tea staining
• Welded end caps
• Manufactured to suit your tile thickness
• Single dropper of your choice within 75-100mm from an end
• Weep slots in horizontal flashing to discharge any water under the tiles
• 50+mm built-in stainless steel flashing on horizontal surfaces to meet and or exceed Australian Standards for flashing on horizontal surfaces
• All Tile Insert linear drains are delivered with a suction cup to aid the removal of the tile insert tray. Please Note: The suction cup should only be used to lift the tile insert tray at one end, allowing the tray to be grasped by hand and carefully lifted out. The suction cup is unlikely to work on porous stone or tile surfaces such as bluestone or marble
