Versatile Slot Drain

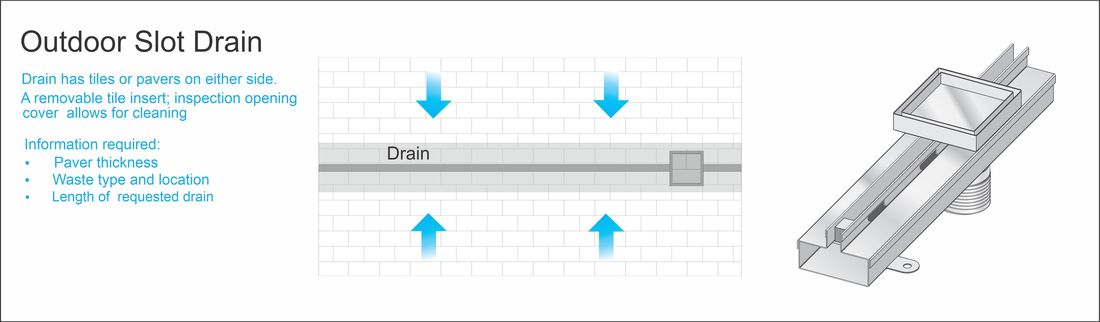

The Versatile Slot Drain from Creative Drain Solutions provides subtle drainage for outdoor areas, around pools, courtyards or alfresco areas.  A thin slot (10-20mm) catches the water into the drain below. A small Tile Inspection opening allows for access to the outlet. Cleaning is simple using a hose or water power washer,  any dirt or debris can be flushed to the Tile Inspection opening where it is easily removed.

Available with centre or offset slots, we can work with what you need.

We can custom build the Versatile Slot Drain to perfectly fit your tile or paver thickness or to suit concrete screed.

Features:

• Easy to install
• Fixing points provided
• Fully customisable to the required length and your tile or paver thickness

Optional Extras:

• Additional droppers
• Outlet locations greater than 100mm from an end
• Multi-direction fall
• Powdercoating
• Mitred corners

Included as standard:

• Custom lengths
• Exclusively made from 316 Brushed Marine Grade Stainless Steel
• Passivated and Electro-polished to prevent tea staining
• Welded end caps
• Can be used with concrete
• Manufactured to suit your tile or paver thickness
• Single dropper of your choice within 75-100mm from an end

The Versatile Slot Drain from Creative Drain Solutions provides subtle drainage for outdoor areas, around a pools, court yards or alfresco areas.

The drain is manufactured exclusively from 316 marine grade stainless steel and consists of a channel available in a range of depths. Welded to the channel is a top section which includes the slot opening, it is designed to suit specific tile or stone thicknesses and the slot width can vary from 10-20mm. The drain features punched slot weep holes so that any water that gets under tiles can get back into the drain.

We recommend that the Versatile Slot Drain is installed with Tile Insert Inspection Points over waste outlets for easy maintenance.

After manufacturing, the drain is put through a passivated chemical process that cleans and treats all welds to prevent tea-staining. This improves the resistance of the drain to harsh chemicals it is exposed to in the pool environment.

When used in outdoor areas, court yards, alfrescos or by the pool, the Versatile Slot Drain provides a discreet, stylish alternative drainage solution.
